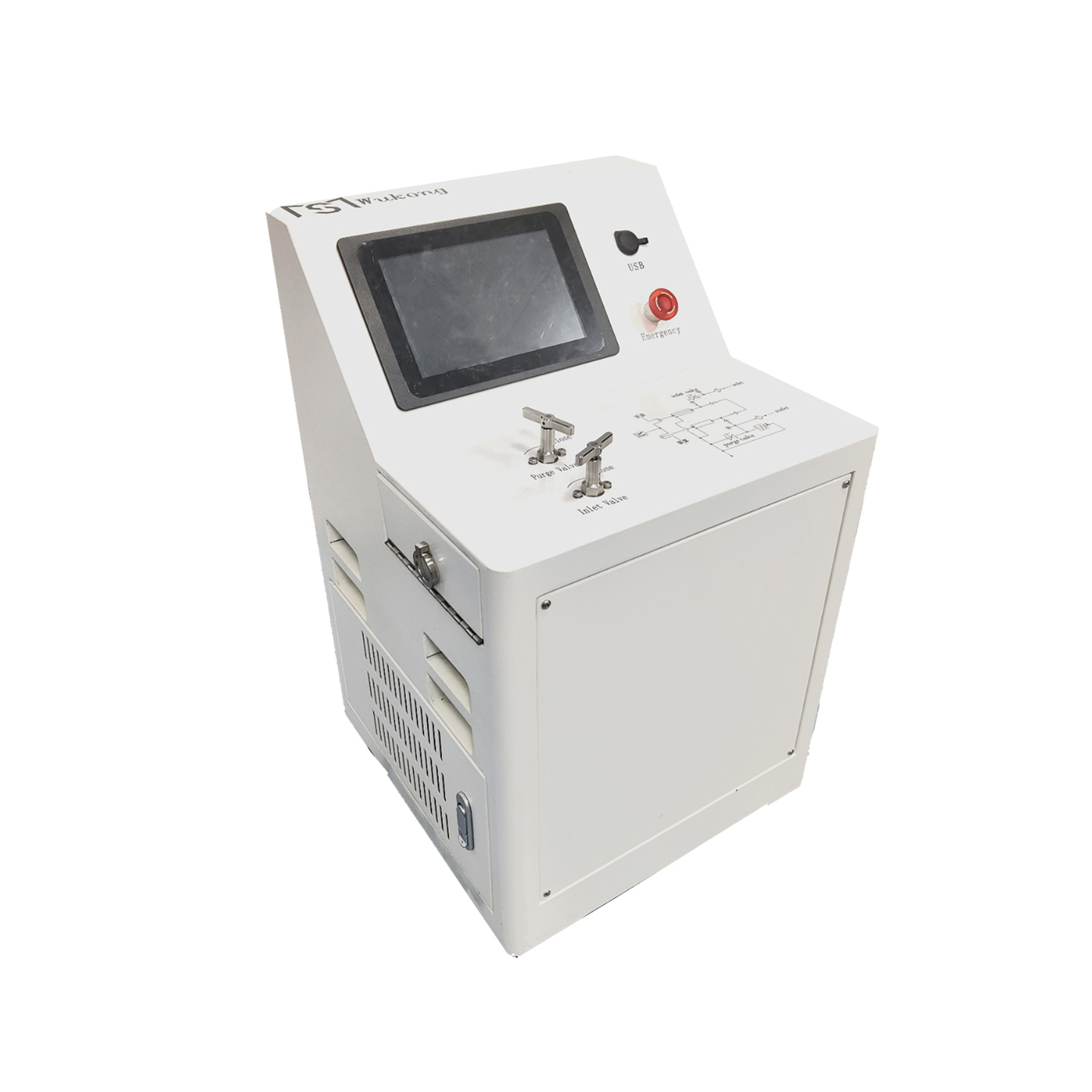

MDYZ3502A Hydrogen Compressor
Category
Specifications
Working Medium
Hydrogen / Helium / Nitrogen / Air
Compression Type
Bipolar Series Electric Compression
Inlet Pressure
1.0 – 15 MPa
Outlet Pressure
1.0 – 35 MPa
Operating Flow Rate
50 NLPM @ 5 MPa
Operating Voltage
220V / 2.0 kW
Operating Temperature
-50℃ to +45℃
Cooling Method
Air Cooling
Control Method
Touchscreen HMI
Maintenance Interval
≈ 3000 h
Operating Noise Level
≈ 65 dB
Dimensions
850 × 500 × 500 mm
Product Weight
95 kg
Inlet / Outlet Requirements
M12 × 1.25 or Customization
