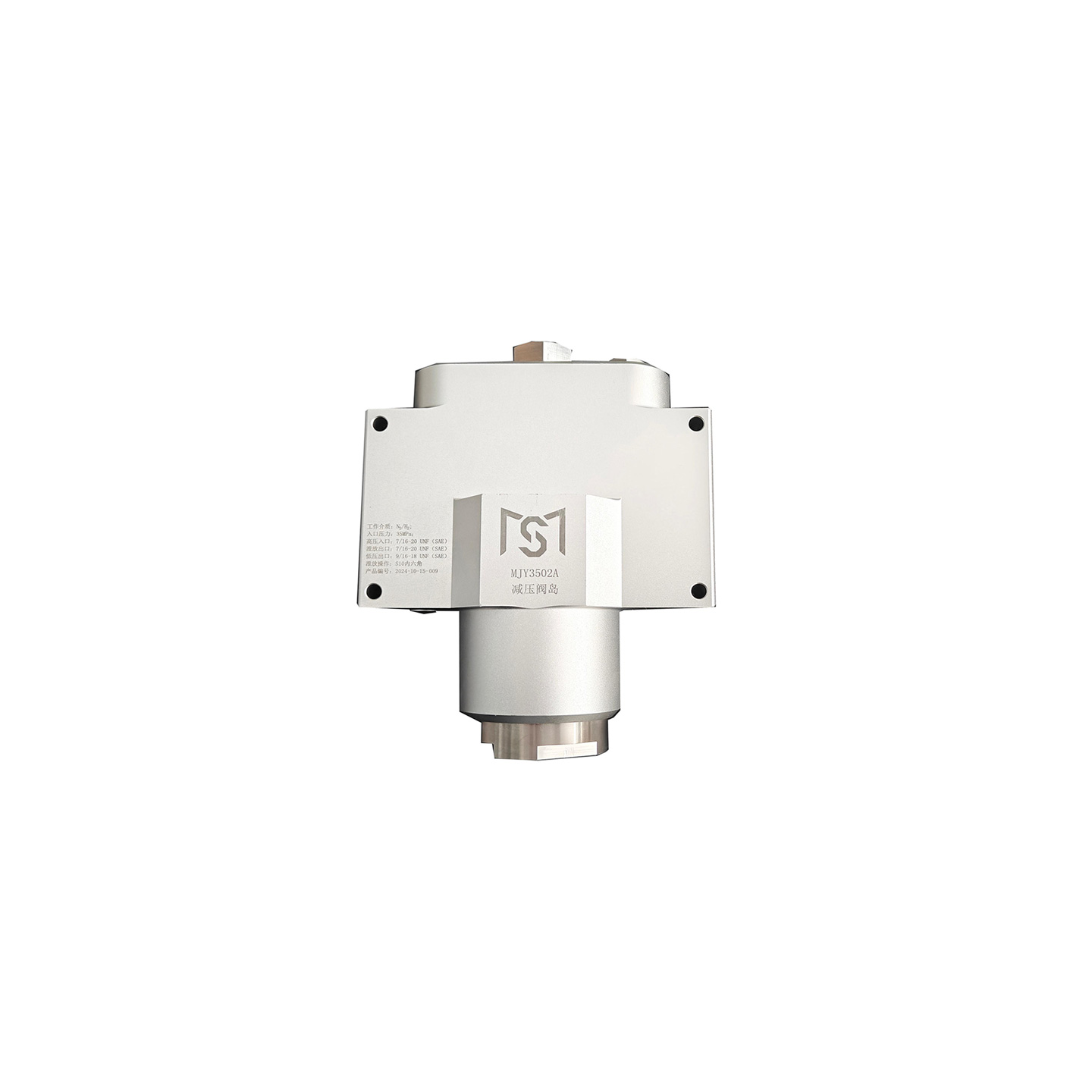

MJY3502A Pressure Regulator Manifold

MJY3502A

The MJY3502A Pressure Regulator Manifold features a two-stage pressure regulation system and integrates filtration, safety relief, and pressure monitoring functions. It is designed for use in 35MPa hydrogen fuel cell vehicles, including commercial and passenger vehicles, to ensure stable system pressure control.

  • ISO 9001: Quality Management System
  • ISO 14001: Environmental Management System
  • ISO 45001: Occupational Health and Safety Management System
  • Accredited by IAF and CNAS
Category
Specifications
Relief Pressure
1.35 MPa
Rated Inlet Pressure
35 MPa
Minimum Inlet Pressure
0.8 MPa
Outlet Pressure
50 ± 10 kPa
Medium
Hydrogen, Nitrogen
Operating Temperature
-40℃ to 85℃
Filtration Accuracy
Dimensions
134 × 127 × 60 mm
Product Weight
1720 g
Mechanical Interface
Inlet Port: SAE7/16
Outlet Port: SAE9/16
Drain Port: SAE7/16
