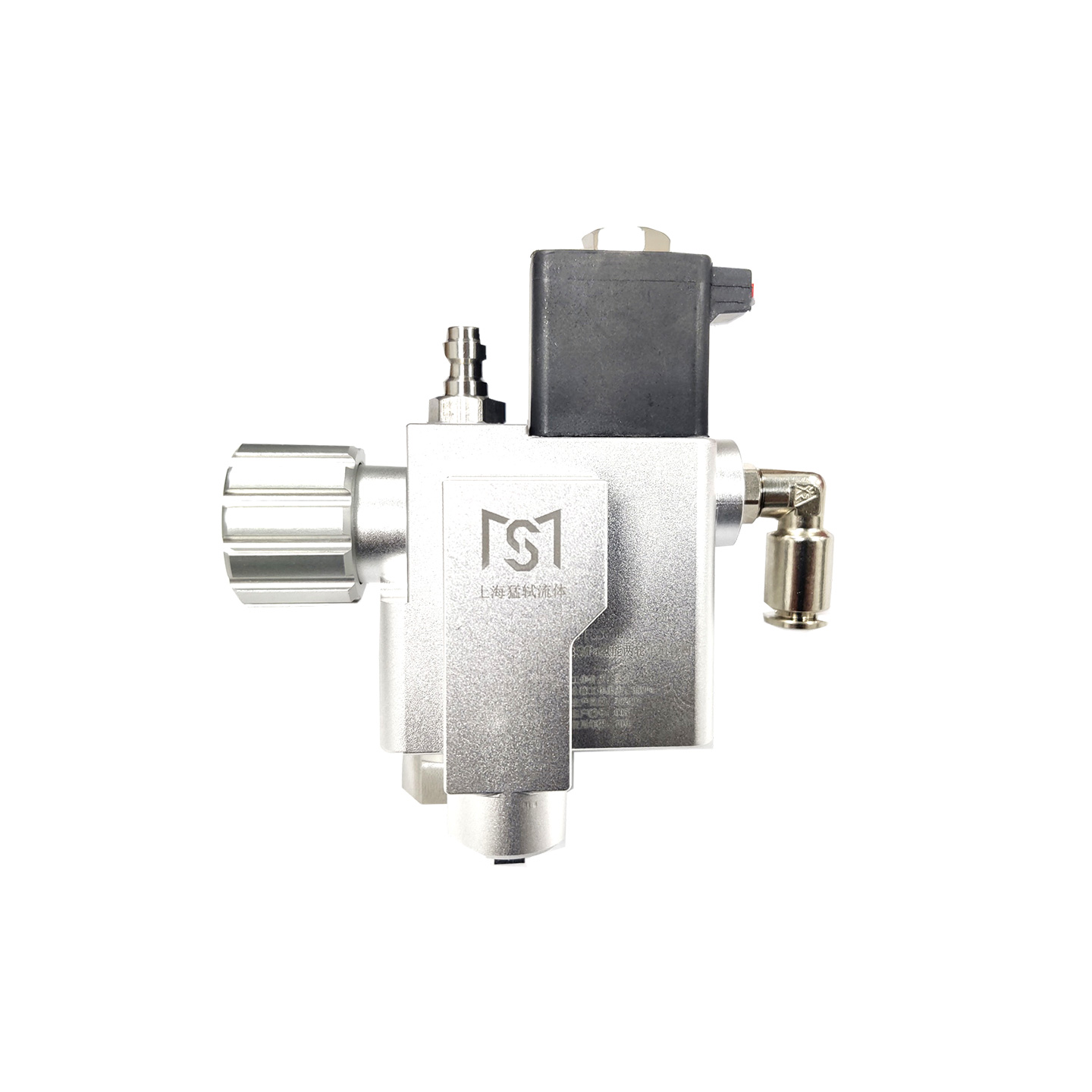

MPF3506E 35MPa Hydrogen Two-Wheeler Integrated Valve

MPF3506E

The MPF3506E 35MPa Hydrogen Two-Wheeler Integrated Valve is specifically developed for hydrogen fuel cell electric vehicles. This highly integrated and high-performance valve combines gas filtration, pressure regulation, shut-off, high-temperature safety relief, and external pressure monitoring functions. It has been widely adopted in the hydrogen-powered two-wheeler industry.

The product features a dual-stage pressure reduction system, enabling stable pressure regulation from 35MPa at the gas cylinder down to 50kPa at the outlet. With a precisely calculated and optimized design, it continues to operate effectively even at inlet pressures as low as 0.8MPa, fully meeting customer requirements.

Category
Specifications
Rated Inlet Pressure
35 MPa
Minimum Inlet Pressure
0.8 MPa
Outlet Pressure
50 ± 10 kPa
Medium
Hydrogen, Nitrogen
Rated Flow Rate
30 NLPM
Operating Temperature
-40℃ to 85℃
Filtration Accuracy
10μ
Dimensions
92 × 96 × 46 mm
Product Weight
483 g
Mechanical Interface
M18 × 1.5 / M8
