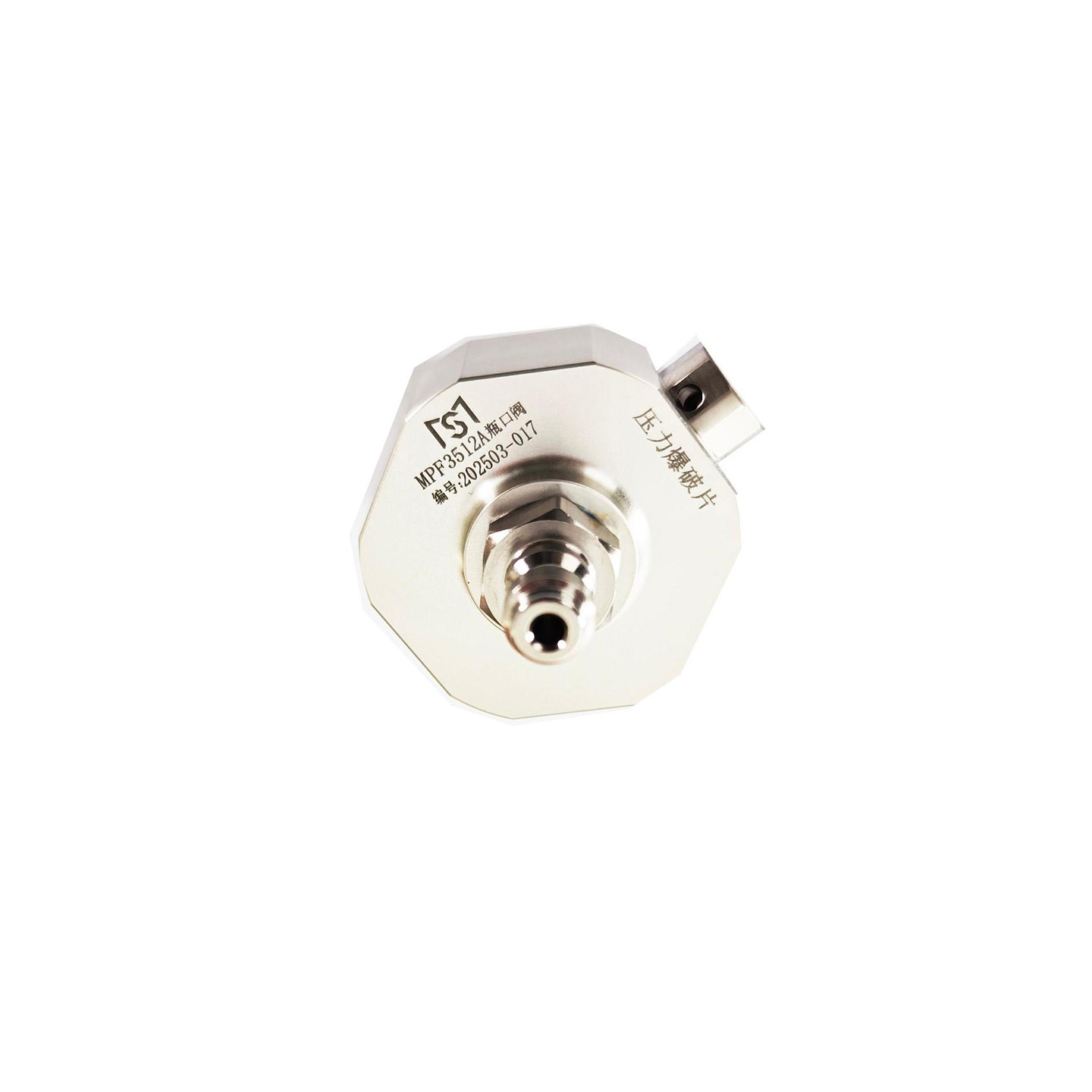

MPF3512A Cylinder Valve

MPF3512A

The MPF3512A Solid-State Cylinder Valve is developed by Shanghai Mengshi Fluid Machinery Co., Ltd. for use in solid-state hydrogen-powered two-wheel assist vehicles. This valve integrates multiple functions including gas filtration, filling and discharging, and safety relief.

Category
Specifications
Medium
Hydrogen
Rated Flow Rate
12 NLPM
Dimensions
36 × 36 × 40 mm
Product Weight
74.6 g
Rated Working Pressure
1 MPa
Outlet Connection
8 mm Quick-Connect
Outlet Type
Check Valve
